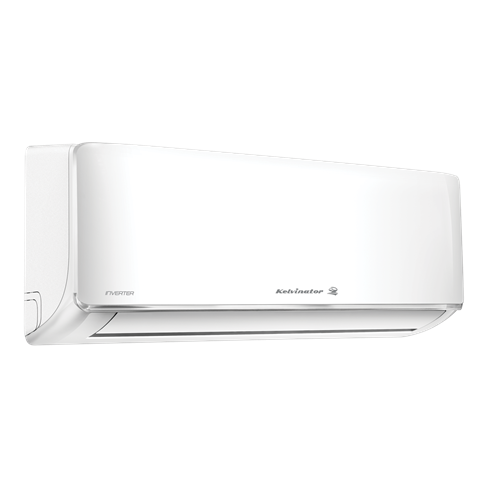

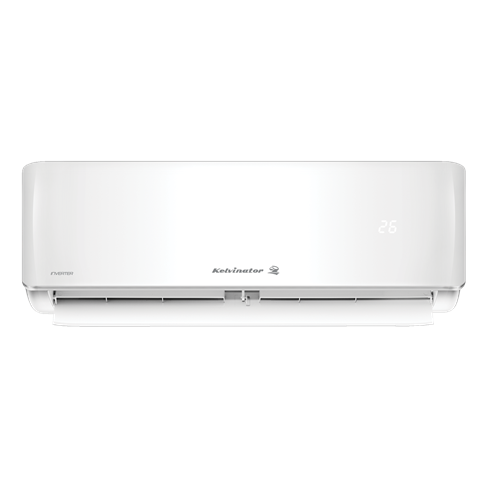

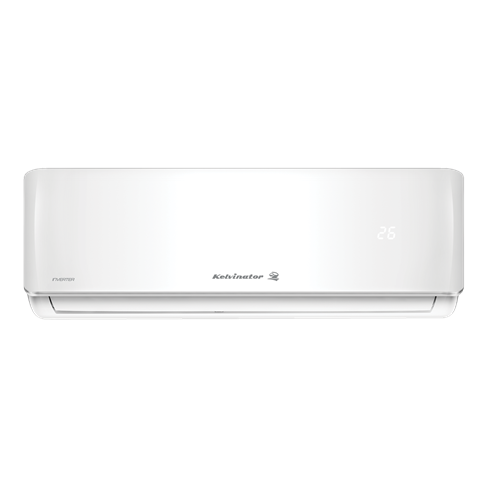

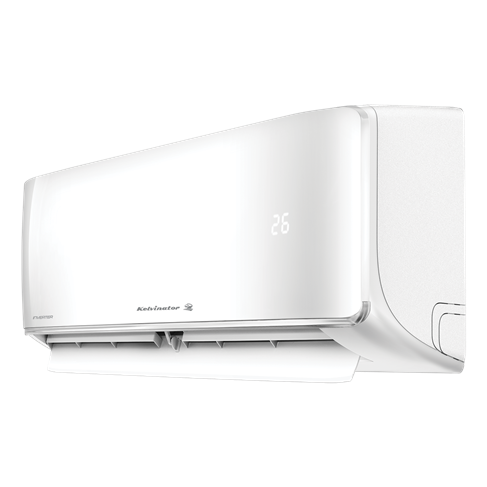

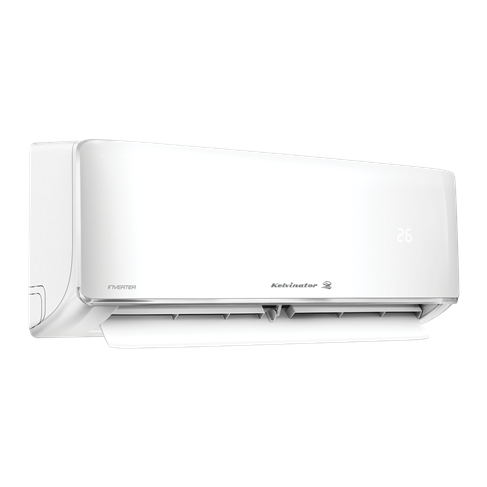

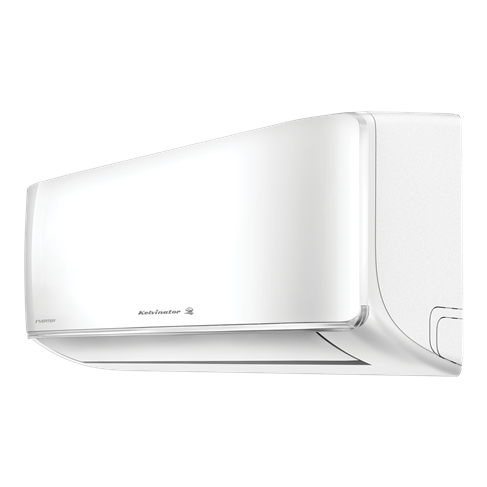

KSD71HWJ

7.1kW split system air conditioner, Wi-Fi

7.1kW split system reverse cycle air conditioner featuring wireless connectivity, inverter compressor, DC fan motor with 12 fan speeds, concealed dimmable digital display, HEPA and ion filters, auto air swing (up, down), LCD remote, demand response capable, 7.1kW cooling/8.0kW heating capacity.

Where to buy

Key Benefits

Comfort & convenience at the touch of your hands

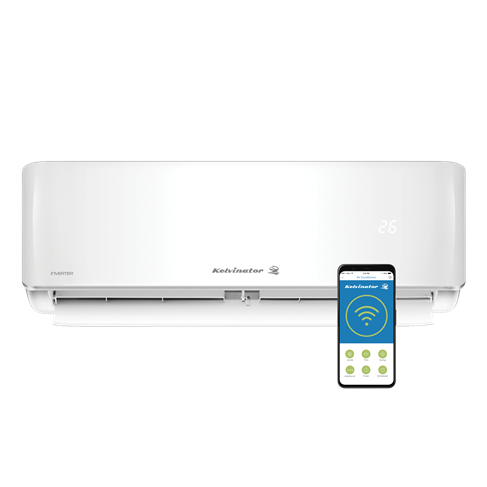

Kelvinator Connect allows you to be smarter with your heating and cooling needs from any location with your smart device via the Kelvinator Home Comfort App. At your convenience, turn the unit on or off, change temperatures, control modes and adapt fan speeds to best meet your comfort needs.

Key Benefits

Superior comfort and control

With DC inverter technology you’ll enjoy greater comfort, control and energy efficiency all year round

Key Benefits

Easy to use

One touch climate control is at your fingertips with a simple-to-use remote control

Key Benefits

Easy to clean

The contemporary clean-face fascia not only looks good, it also minimises dust build-up on the front of the unit. Slim and compact, these air-conditioners are unobtrusive and will suit any interior style

Key Features

  • Heating and cooling modes of operation
  • Kelvinator Connect
  • Auto or Manual operation

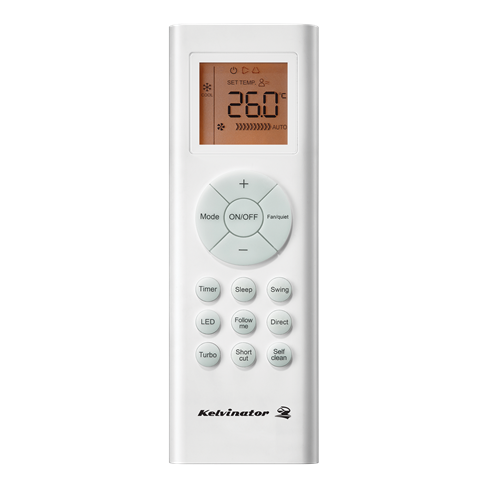

  • LCD backlit wireless remote control
  • Follow Me command
  • 24 hour timer
  • Auto restart
  • Inverter compressor technology
  • Auto Air Swing
PRODUCT PROFILE
Domestic warranty details (yrs)
5
Type
reverse cycle
SPECIFICATIONS
Capacity cool watts
7100
Capacity Heat watts
8000
Current rating amps
17.5
Indoor sound pressure dBA high setting
52
Indoor sound pressure dBA low setting
34
Outdoor sound pressure dBA
60
Outdoor Sound Power dBA
67
Indoor air circulation max (ltr/s)
378
Ambient temperature range minimum
-15
Ambient temperature range maximum
50
Moisture removal ltr/hour
2.8
Energy star rating cooling
2.5
Energy star rating heating
3.0
Heating COP
3.75
Refrigerant weight (g)
1300
Refrigerant type
R32

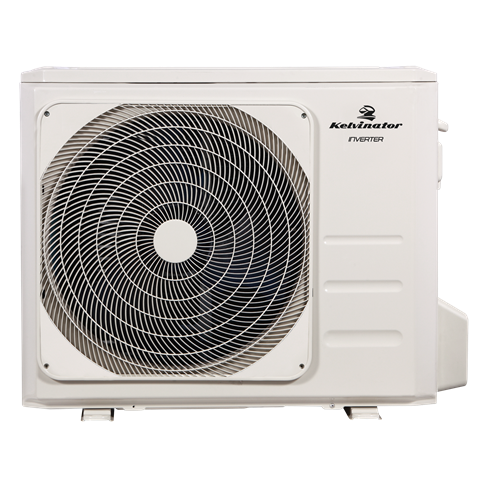

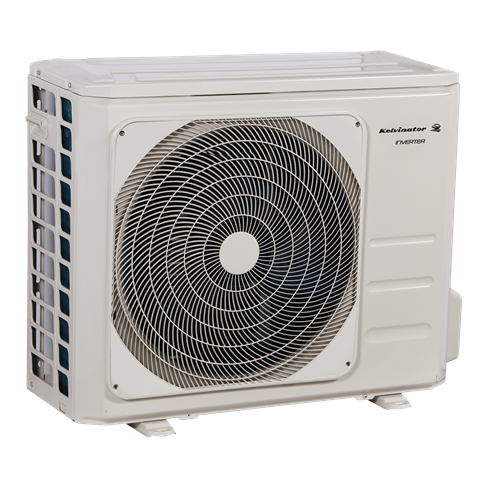

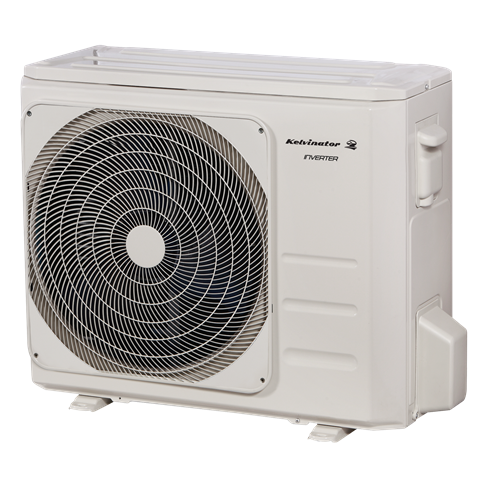

OUTDOOR UNIT DIMENSIONS
Width (mm)
890
Height (mm)
673
Depth (mm)
342
INDOOR UNIT DIMENSIONS
Total width (mm)
1080
Total height (mm)
335
Total depth (mm)
226
